Patterned stainless steel sheets; elegant embosses stainless steel with deep cut patterns.
These are patterned stainless steel (embossed) sheets with patterns transferred continuously onto the sheet surface, highlighting the beauty of the concave-convex alternation and contrast out and creating a sophisticated look.
SF/YF series (single side embossed)
SPARK series (YD)
0.4 - 1.5 x 1,000Max
MIZUTAMA Large (SF-20)
0.4 - 1.5 x 1,000Max
CHECKER (YF-26)
0.4 - 1.5 x 1,000Max
KNIT (YF-32)
0.4 - 1.5 x 1,000Max
SPLASH (YF-28)
0.4 - 1.5 x 1,000Max
SPLASH II (F-38A)
0.4 - 1.5 x 1,000Max
SUJIME Small (SF-5)
0.4 - 1.5 x 450Max
KUMOGATA (SF-6)
0.4 - 1.2 x 1,000Max
SAKURA (SF-13)
0.4 - 1.5 x 1,000Max
MOMIJI (SF-16)
0.4 - 1.5 x 1,000Max
ITCHO (SF-17)
0.4 - 1.5 x 1,000Max
HANA (SF-29)
0.4 - 1.5 x 1,000Max
TE Series (double side embossed)
NANAKO (TE-11)
0.3 x 300Max
0.4 x 250Max
0.5 x 150Max
NANAKO Large (TE-12)
0.3 - 0.8 x 400Max
MELON (TE-52)
0.3 - 0.4 x 1,000Max

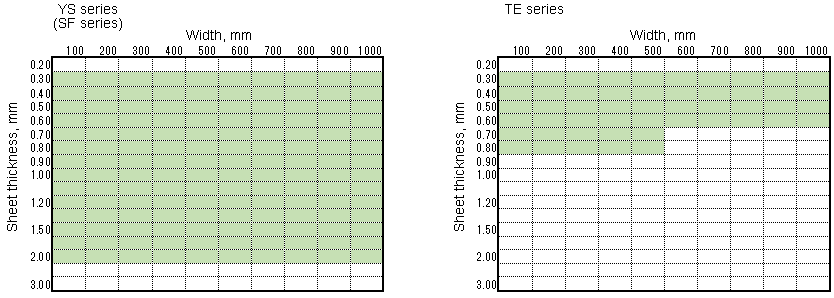

Available manufacturing range
| Lot sizes | □ We can manufacture products ranging from plates measuring 1,000 x 2,000 mm to coils. Plates can be manufactured from lots of a single plate. |
|---|
Consult with us for dimensions beyond the available manufacturing range or design other than standard patterns.
